Product Description

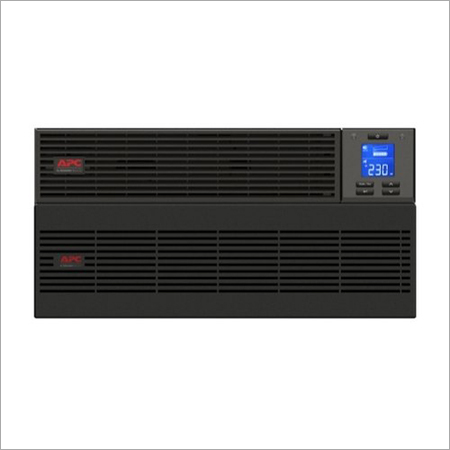

30 Kva Schneider Electric Easy Ups
The offered 30 Kva Schneider Electric Easy Ups is a smart and intelligent power back-up system which is designed and developed as per the electrical standards by using top quality electrical and electronic elements for the efficient working of this unit. It is provided with a built-in bypass system and safety units which offers protection against voltage surges. Buy from us high performance 30 Kva Schneider Electric Easy Ups at a reasonable and low price.
Technical Specification:
Bypass Type | Built-in maintenance bypass |
Brand | APC |
Model Name/Number | E3SUPS15KH |
Operating Temperature | 0 Deg C to 40 Deg C |
Frequency | 45 - 65 Hz |
Capacity | 15 kVA |
Phase | 3 Phase |
Voltage | 400 V/ 380/400/415 V (Three-phase + Neutral) |
Crest Factor | 3 : 1 |
UPS Type | Double conversion online |
Rated Power | 15000 W |
Input Power Factor | 0-95 % non-condensing |
Curve Y-Axis Minimum | 50% |
Curve Y-Axis Maximum | 100% |
Curve X-Axis Maximum | 100% |
Relative Humidity | 0 to 95% non-condensing |
Output Voltage Tolerance | +/-1.5% static |
Operating Elevation | 0 to 1,000 m at 100% load |
Low frame, unpackaged/ shipping dimensions | 770 x 250 x 800 mm,1015 x 400 x 982 mm |
Low frame, unpackaged, shipping weight | 60,77 kg |
Input Power Factor | Up to 0.99 |
Efficiency Eco Mode | 0.99 |
