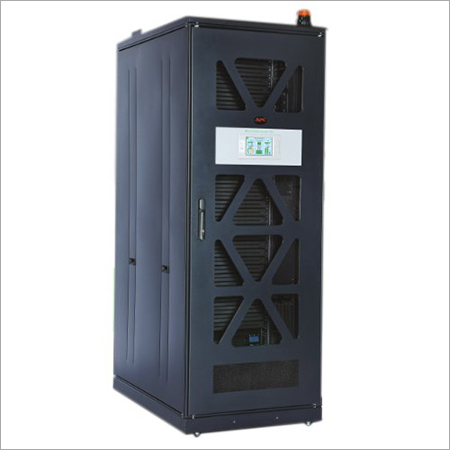

Micro Data Center

Available U Space

35 U

UPS Rated Input

230VAC

UPS Capacity

6kVA UPS

Total Cooling Unit Capacity

3.5kW

Total Cooling Unit Airflow

700CMH ( Cubic Meter Per Hour)

Static Load Bearing

1000 kg

Recommended IT Load

3kW

Power Supply Input

Dual Feed AC 230V/1P/50Hz

Output Max Power

6kVA/5.4kW

Outdoor Ambient Temperature

-20-+45 Deg C

Input Power Factor

0.98

Input Frequency Range

40-70 Hz

Efficiency

94% in Online & 98% In Green Mode

Dimension

800X1200X2150mm

Backup Time

15 Min (1 Battery pack, 40 Mins With 2 Battery Pack)
